New UPS and USPS Integrations v4.18.2+

General General Questions
1

Does anyone have the new integrations from UPS and USPS working properly.

UPS was updated on v4.18.2 - I have it working but I can’t get my negotiated rates to show and I am positive I have I have the settings correct.

USPS was updated on v4.19.1 - I have my settings correct or at least I believe I do. I can’t get any rates in admin test calculation or on the site.

I have contacted CSC support and I am not getting anywhere. Don’t want to pay for upgraded support when it seems like this is their issue to resolve.

I have contacted UPS tech and everything they tell me points to CSC integration issue.

I have not contacted USPS support.

Anyhow, let me know if any of you have these working properly and if you had to do something special to get them to work properly.

Thanks
Ken

2

Where did you find instructions for setting up real-time shipping rates in the new version 4.19.1? I am not seeing anything in the documentation about how to do this. When I upgraded my store I was sent an automated email that said I need to acquire API credentials at the USPS web site, but gave ZERO instructions on how to do this. How did you accomplish this?
Sorry I’m not answering your question, but if I can figure out how to get the API credentials, maybe we can troubleshoot this together.

3

UPDATE: I managed to get everything set up with USPS, input my client ID and secret ID into the CS-Cart shipping settings for Priority Mail as a test, but it’s not working. Priority Mail is not showing up on the front end of the site, and when testing on the backend I get this error message: Error Service returned an empty response

4

CSC support provided this fix to get UPS negotiated rates working.

app/Tygh/Shippings/Services/Ups.php

Make a backup of your original file before making the change.

This may not be the final version.

Replace this:
‘PickupType’ => [
‘Code’ => $pickup_type,
],
‘Shipment’ => [
‘Service’ => [
‘Code’ => $this->_shipping_info[‘service_code’],
],
‘Shipper’ => [
‘Address’ => [
‘PostalCode’ => $this->package[‘origination’][‘zipcode’],
‘CountryCode’ => $this->package[‘origination’][‘country’],
],
],
‘ShipTo’ => [
‘Address’ => [
‘StateProvinceCode’ => $this->package[‘location’][‘state’],
‘PostalCode’ => $this->package[‘location’][‘zipcode’],
‘CountryCode’
=> $this->package[‘location’][‘country’],
‘ResidentialAddress’ => ‘’,
],
],
‘ShipFrom’ => [
‘Address’ => [
‘StateProvinceCode’ => $this->package[‘origination’][‘state’],
‘PostalCode’ => $this->package[‘origination’][‘zipcode’],
‘CountryCode’ => $this->package[‘origination’][‘country’],
‘ResidentialAddress’ => ‘’,
]
]

with this:
‘PickupType’ => [
‘Code’ => $pickup_type,
],
‘CustomerClassification’ => [
‘Code’ => ‘00’,
],
‘Shipment’ => [
‘Service’ => [
‘Code’ => $this->_shipping_info[‘service_code’],
],
‘Shipper’ => [
‘Address’ => [
‘PostalCode’ => $this->package[‘origination’][‘zipcode’],
‘CountryCode’ => $this->package[‘origination’][‘country’],
‘City’ => $this->package[‘origination’][‘city’],
],
],
‘ShipTo’ => [
‘Address’ => [

‘StateProvinceCode’ => $this->package[‘location’][‘state’],
‘PostalCode’ => $this->package[‘location’][‘zipcode’],
‘CountryCode’ => $this->package[‘location’][‘country’],
‘City’ => $this->package[‘location’][‘city’],
],
],
‘ShipFrom’ => [
‘Address’ => [
‘StateProvinceCode’ => $this->package[‘origination’][‘state’],
‘PostalCode’ => $this->package[‘origination’][‘zipcode’],
‘CountryCode’ => $this->package[‘origination’][‘country’],
‘City’ => $this->package[‘origination’][‘city’],
]
]

5

I am still working with CSC Support on USPS. The settings are very confusing. They provided the attached suggested settings and they work for Parcel Select but not Priority mail. So, I am still confused about this one. It’s the weekend so I am not putting much effort right now but will update if CSC or I figure something out.

I am guessing but

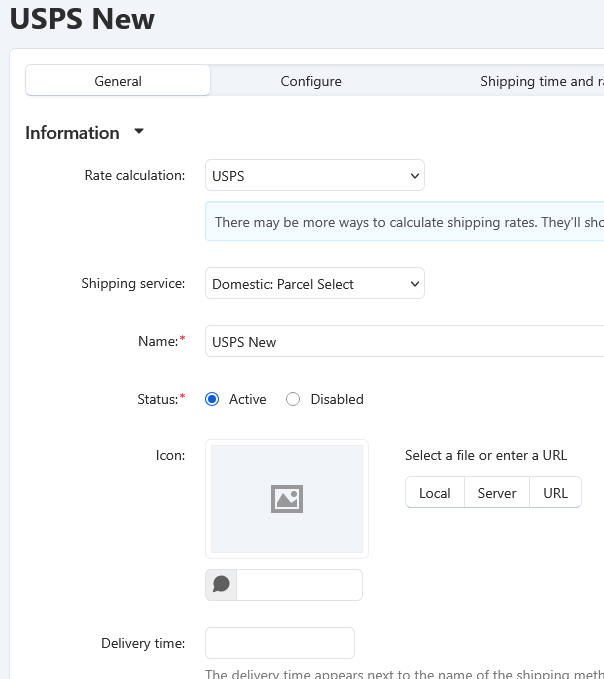

USPS-Parcel Select-settings
USPS-Parcel Select-settings546×615 8.53 KB

they may put put out a patch for both UPS and USPS integrations.

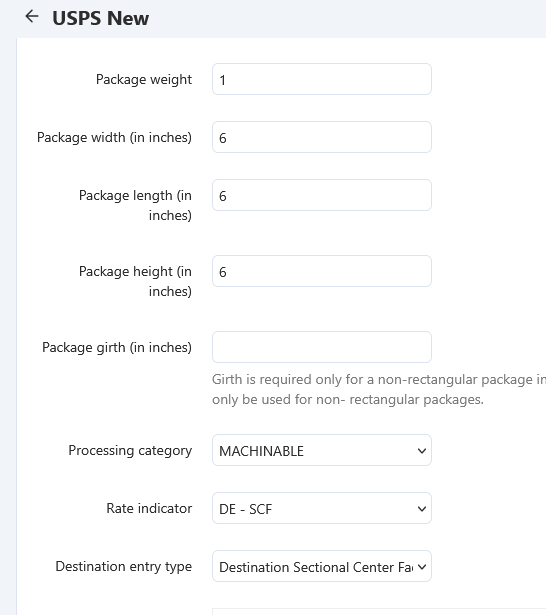

USPS-Parcel Select
USPS-Parcel Select604×679 16.1 KB

1 Like
6

These setting work for Domestic Priority Mail.

Price Type: Commercial
Processing Category: Machinable
Rate Indicator: SP - Single Piece
Destination entry Type: None

I still do not have International First Class or Priority figured out.

7

REVISED TO PROVIDE RESIDENTIAL NEGOTIATED RATES:
added this field - ‘ResidentialAddressIndicator’ => ‘’,
to the ship to section

app/Tygh/Shippings/Services/Ups.php

Make a backup of your original file before making the change.

This may not be the final version.

Replace this:
‘PickupType’ => [
‘Code’ => $pickup_type,
],
‘Shipment’ => [
‘Service’ => [
‘Code’ => $this->_shipping_info[‘service_code’],
],
‘Shipper’ => [
‘Address’ => [
‘PostalCode’ => $this->package[‘origination’][‘zipcode’],
‘CountryCode’ => $this->package[‘origination’][‘country’],
],
],
‘ShipTo’ => [
‘Address’ => [
‘StateProvinceCode’ => $this->package[‘location’][‘state’],
‘PostalCode’ => $this->package[‘location’][‘zipcode’],
‘CountryCode’
=> $this->package[‘location’][‘country’],
‘ResidentialAddress’ => ‘’,
],
],
‘ShipFrom’ => [
‘Address’ => [
‘StateProvinceCode’ => $this->package[‘origination’][‘state’],
‘PostalCode’ => $this->package[‘origination’][‘zipcode’],
‘CountryCode’ => $this->package[‘origination’][‘country’],
‘ResidentialAddress’ => ‘’,
]
]

with this:
‘PickupType’ => [
‘Code’ => $pickup_type,
],
‘CustomerClassification’ => [
‘Code’ => ‘00’,
],
‘Shipment’ => [
‘Service’ => [
‘Code’ => $this->_shipping_info[‘service_code’],
],
‘Shipper’ => [
‘Address’ => [
‘PostalCode’ => $this->package[‘origination’][‘zipcode’],
‘CountryCode’ => $this->package[‘origination’][‘country’],
‘City’ => $this->package[‘origination’][‘city’],
],
],
‘ShipTo’ => [
‘Address’ => [

‘StateProvinceCode’ => $this->package[‘location’][‘state’],
‘PostalCode’ => $this->package[‘location’][‘zipcode’],
‘CountryCode’ => $this->package[‘location’][‘country’],
‘City’ => $this->package[‘location’][‘city’],
‘ResidentialAddressIndicator’ => ‘’,
],
],
‘ShipFrom’ => [
‘Address’ => [
‘StateProvinceCode’ => $this->package[‘origination’][‘state’],
‘PostalCode’ => $this->package[‘origination’][‘zipcode’],
‘CountryCode’ => $this->package[‘origination’][‘country’],
‘City’ => $this->package[‘origination’][‘city’],
]
]

1 Like
8

Perfect! USPS Domestic Priority Mail is now working with these settings.
